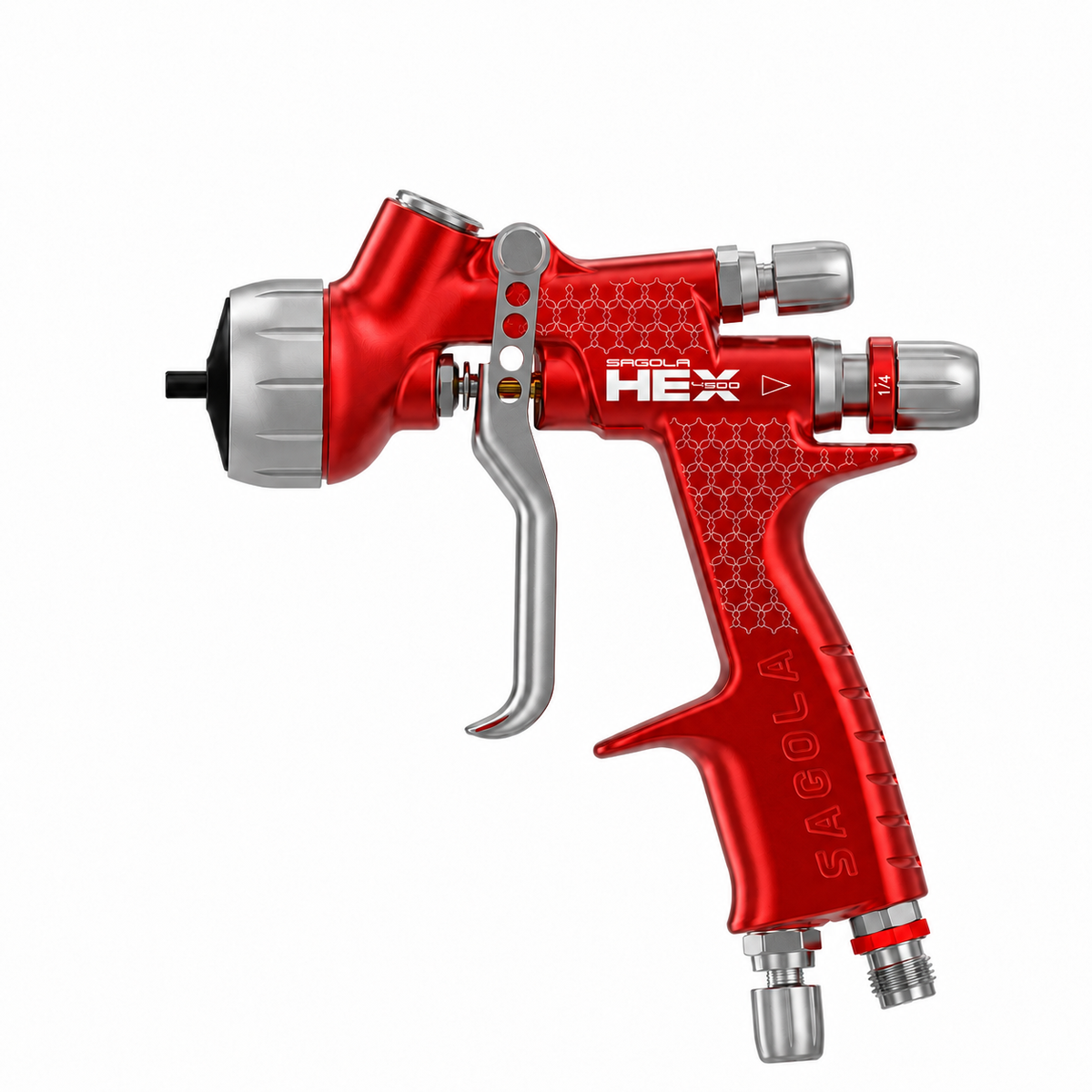

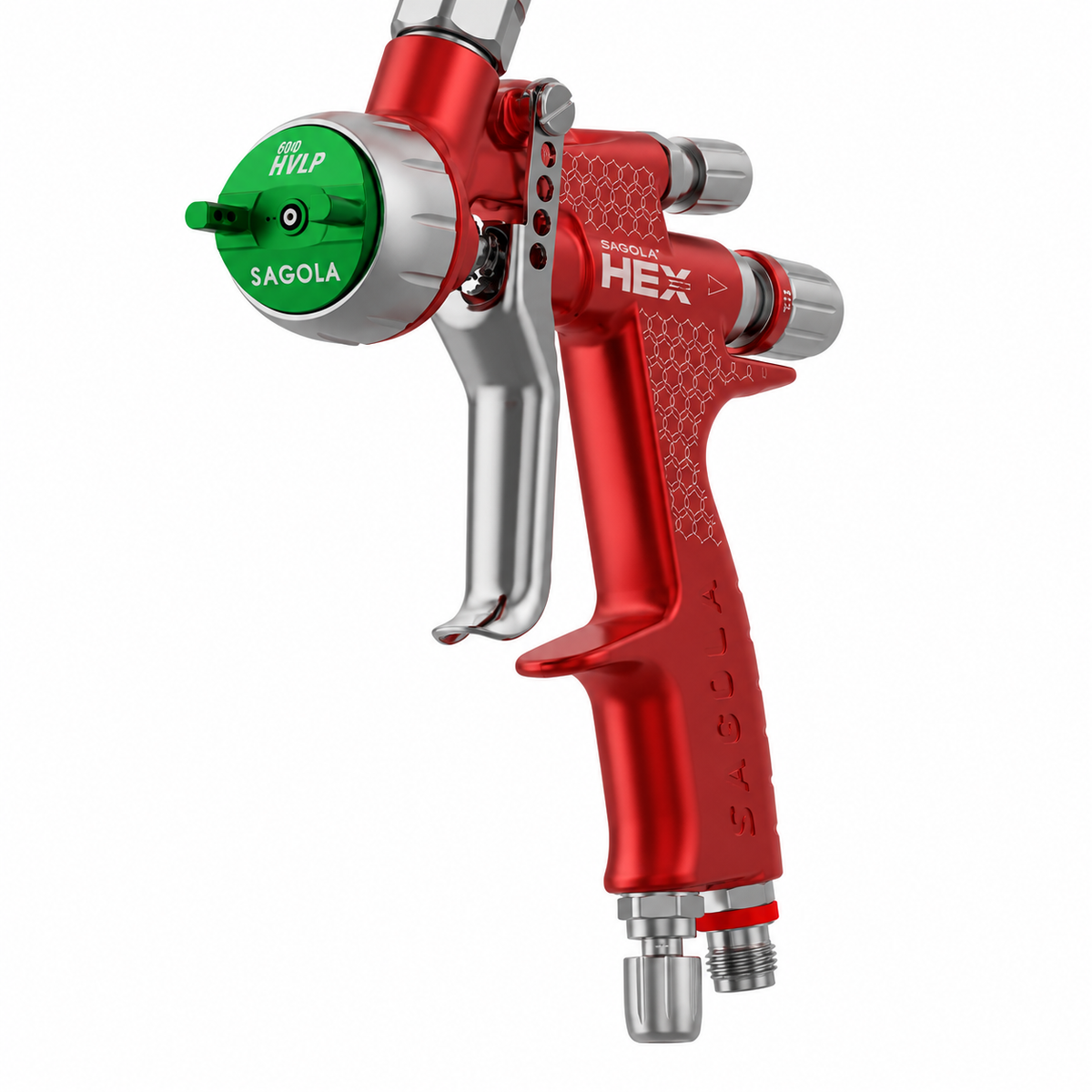

Sagola 4600 HEX HVLP Spray Gun

Professional gravity-feed HVLP spray gun featuring HEX System™ pre-atomization technology. Engineered for high transfer efficiency, maximum paint savings, and ultra-smooth, uniform fan patterns on basecoats and clearcoats.

Maximum Transfer Efficiency & Glass-Smooth Finishes

The Sagola 4600 HEX HVLP Spray Gun (Art. 10142477) sets a new standard for professional automotive refinishing and high-end industrial painting. Engineered with Sagola’s patent-pending HEX System™ pre-atomization technology, this spray gun delivers superior atomization at lower working pressures, eliminating mottling, fan-pattern splitting, and uneven metallic particle distribution.

Key Features

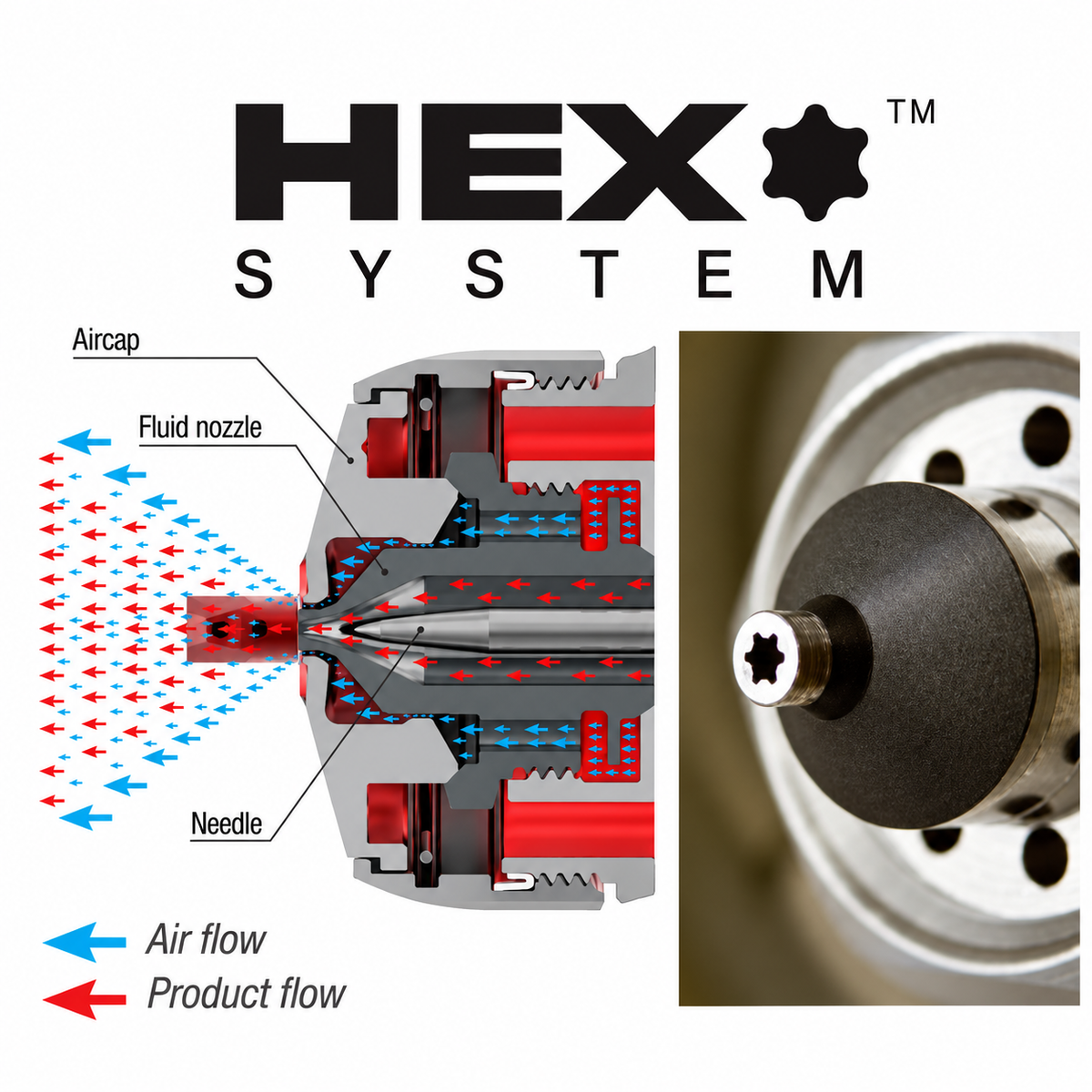

• HEX System™ Nozzle Technology: Hexagonal needle and nozzle geometry provides star-pattern pre-atomization for ultra-fine droplet control and streak-free application.

• HVLP Transfer Efficiency: Complies with environmental regulations by delivering high material transfer rates and minimal overspray.

• Metal-to-Metal (M2M™) Construction: Reduces wearing joints and packings in the fluid section, making maintenance fast and cost-effective.

• Ergonomic & Ultra-Lightweight Body: Premium anodized aluminum finish designed to reduce fatigue during extended booth sessions.

• Versatile Material Compatibility: Stainless steel fluid components and solvent-resistant PTFE seals handle both waterborne and solvent-based basecoats, clears, and single-stage finishes.

Specifications

• Article Number: 10142477

• Air Cap System: HVLP

• Body Material: Anodized Forged Aluminum

• Fluid Path Components: Stainless Steel / PTFE

• Recommended Working Pressure (HVLP): 1.8 – 2.0 bar (26 – 29 psi)

• Max Operating Pressure: 4.0 bar (58 psi)

• Air Consumption (HVLP): ~425–450 L/min (~15.0–15.9 CFM)

• Recommended Spray Distance: 12 – 15 cm (4.7 – 6 in)

• Air Inlet Connection: 1/4" BS
